Finishing Options: Hooks & Shrouds

Shrouds can be attached to the edges of screens for industrial machinery applications, such as rock crushers and aggregate filtration. IWW can apply several different styles of hooks including  #2 hooks, U-style Hooks, and Square hooks. Examples can be seen below.

screen_diagram (1).jpg



When ordering, it is important to note OCW, or Outside Clamp Width. This is the dimension which lays outside of your equipments clamps.

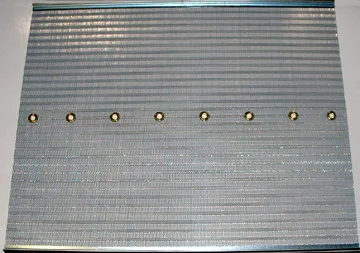

Hummers: High Frequency screens are also available in withholes punched at the centerline. If required we can install grommets on these holes.



#2 Hook


Double Fold #2 Hook


U-Style


Square

Hook


Double Fold High Tension Hook

This hook is available with multiple leg and throat dimensions.


S-Style
